YoloCardA 5€ smart card emulator

Flash a STM32 Blackpill, plug it into your Android or PC, and play the card in JavaScript — straight from the browser, thanks to WebUSB.

Protocol example

You control every byte

Set the ATR, answer each APDU yourself — real ISO 7816-4 line traffic, not a canned simulation.

Same code, any device

One JS API over WebUSB — desktop Chrome/Edge/Opera or Android, no native app to ship.

Built for research

Live callbacks for every frame, reset, and speed negotiation on the line — inspect, replay, or fuzz an ISO 7816 reader without proprietary tooling.

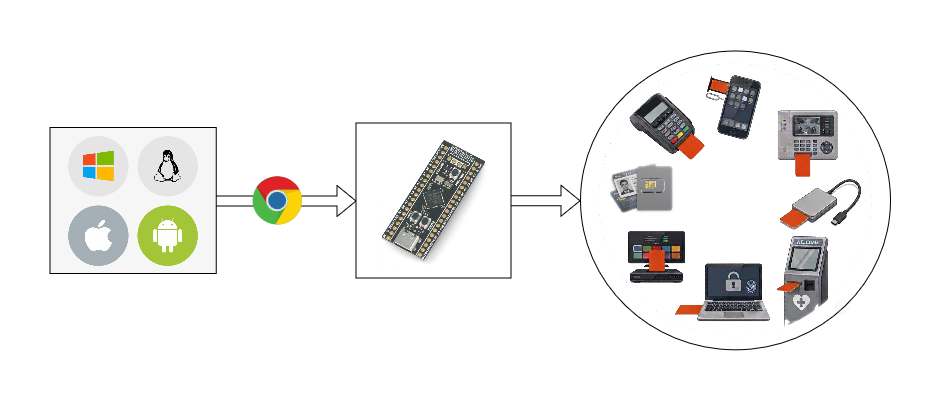

Android/PC via Chrome WebUSB to the YoloCard board to any ISO 7816 reader

Install ​

sh
npm install yolocard-sdk

Requires a Chromium-based browser (Chrome, Edge, Opera) served over HTTPS or localhost. link.requestUsbTransport() must be called from a user gesture. Connecting to the reader may need an adapter, depending on the reader's contacts.

Relay bytes ​

link moves bytes, protocol frames them — that's the whole seam, joined below. Call it from a user gesture (WebUSB opens the picker on a click). There's no card state machine tracking command boundaries for you: collect the reader's bytes yourself and reach for card.parseApdu(bytes) once you have a complete command.

js
let debounce;
const waitAllFramesFinished = (cb, ms) => {
    clearTimeout(debounce);
    setTimeout(cb, ms)
}


import {link, protocol} from 'yolocard-sdk';

// TS T0 [historical: 80 31 e0 73], no interface bytes, T=0 only (no TCK).
const ATR = '3B 04 80 31 E0 73'; // or [0x3b, 0x04, 0x80, 0x31, 0xe0, 0x73]

const comm = protocol.createCommunicator(await link.requestUsbTransport());
comm.onATRSet(atr => console.log('New ATR', atr))
comm.onResetCold(_ => console.log('Cold reset'))
comm.onResetWarm(_ => console.log('Cold reset'))
comm.onATRTransmitted(_ => console.log('ATR Transmitted'))
comm.onSpeedNegotiated(speed => console.log('Negotiated speed:', speed))
comm.onVoltageSkip(voltage => console.log('Skipped voltage class:', voltage))
comm.onClockStart(speed => console.log(`Clocking started: ${speed} Hz`))
comm.onClockStop(_ => console.log('Clock is down'))
comm.onHardwareFail(_ => console.log('Yolocard reported it has an internal failure.'))

comm.onFrame(frame => {
    console.log(`${frame.side}\t${frame.clock}\t-> ${frame.byteHex}`)
})
comm.onFrame(frame => {
    waitAllFramesFinished(() => frame.comm.sendBytes([0x6d, 0x00]))
});

await comm.connect(); // may raise Firmware Unsupported
await comm.setAtr(ATR);
// Ready to insert!

// comm.clearCallbacks()
// comm.disconnect()
